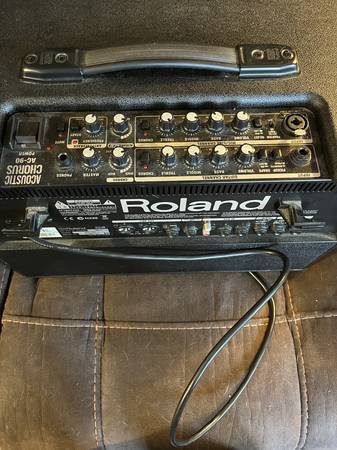

Roland AC90 Performance Amplifier Guitar Vocal Keyboard ETC... - $524 (Kentwood/Grand Rapids)
60th near Division
QR Code Link to This Post
Loaded with high-performance neodymium speakers and 90 watts of power, the Roland AC-90 amp provides a rich, powerful sound while remaining lightweight for easy transport. The AC-90 employs a stereo 2-way speaker system that delivers transparent highs -- great for the built-in multi-band stereo chorus -- while also providing incredibly powerful low-frequency performance.
Legacy of Excellence
The AC-90 isn't just any amp on the block ¦ it's the long-awaited addition to Roland's industry-leading AC-series amp family. Roland's reputation for world-class sound, amazing performance, portability, and top-quality construction in the AC series are all upheld in this stunning amplifier.
Power Performer
With 90 watts of stereo power (45W+45W) driving top-quality neodymium speakers, the AC-90 amplifier delivers exceptional full-range performance -- from shimmering, crystal-clear highs to full-impact bottom end. This amp is more than capable of cutting though a wall of sound.
Anti-Feedback Control
Enjoy maximum volume without feedback. Simply dial in the offending frequency and the AC-90 will suppress the feedback. This allows you to roam the stage with confidence -- even with 90 watts of powerful sound at your back.
Immersive Stereo FX
The AC-90 amp's onboard stereo effects benefit from Roland's decades of industry-leading R&D. Experience the amazing spatial depth and lush sound of the stereo multi-band chorus, complete with developed WIDE mode. Delay and Reverb are provided as well, and can be controlled via footswitch.
Versatility
In addition to its amazing acoustic-guitar amplification qualities, the Roland AC-90 can also function as a portable PA system thanks to its dual-channel architecture and phantom-powered Microphone input.
Features
Power: 90W stereo
Two channels: Guitar input (Piezo/Magnetic) and phantom-powered Mic/Line input
Speakers: 2x8 in. woofers; two 8 cm x 5 cm x 2 cm (3 in. x 2 in.) tweeters
Controls: Guitar channel: Pickup switch (piezo/magnetic), Shape Switch, volume, 3-band EQ, chorus switch; Mic/Line channel: Phantom Switch, Select Switch (mic/line), volume, 3-band EQ, chorus switch, chorus Knob, reverb knob (anti-feedback), frequency knob, start button, mute switch, master knob, power switch
Indicator: Chorus (Guitar channel, Mic/Line channel), Anti-feedback, mute, power
Nominal Input Level (1kHz): Guitar Channel: -10dBu
Mic/Line Channel: -50 / -10dBu
Aux. in: -10dBu
Nominal output level (1kHz): DI/Tuner out: +4dBu
Line out: +4dBu
Sub woofer out: +4 dBu
Guitar input: Channel Input Jack 1/4 in. phone type
Mic/Line Inputs: XLR type, 1/4 in. phone type
Aux. in: RCA phono type,1/4 in. phone type
DI/Tuner out: 1/4 in. TRS phone type
Line out: XLR type, 1/4 in. phone type
Subwoofer out: 1/4 in. phone type
Phones: Stereo 1/4 in. phone type
Footswitch: 1/4 in. TRS phone type
Power Supply: AC 117V, AC 230V, AC 240V (50/60Hz)
Power Consumption: 30W
Comes with Carrying Case, Owner's Manual
(Optional footswitch: BOSS FS-5L (Mute On/Off), BOSS FS-5U, BOSS FS-6) Does not come with.
Connection Cable: PCS-31) Does not come with
Lightweight yet powerful featuring state-of-the-art neodymium speaker technology
Stereo 2-way speaker system provides full-range performance
Roland's famous stereo multi-band chorus with Wide mode, plus reverb/delay
Anti-feedback control feature
Convenient onboard tilt stand; optional speaker stand available
Dimensions: 18.3 in. (464 mm) x 12.9 in. (326 mm) x 11.9 in. (303 mm)
Weight: 25.7 lb. (11.7kg)
Specs
Rated Power Output: 45W + 45W
Nominal Input Level (1kHz): GUITAR Channel: -10dBu
MIC/LINE Channel: -50 / -10dBu
AUX IN: -10dBu
Nominal Output Level (1kHz): DI/TUNER OUT: +4dBu
LINE OUT: +4dBu
SUB WOOFER OUT: +4 dBu
Speakers: Woofer 20cm (8") x 2
Tweeter 8cm x 5cm x 2cm (3" x 2") x 2
Controls:
(GUITAR Channel)
PICKUP Switch (PIEZO/MAGNETIC), SHAPE Switch, VOLUME Knob, Equalizer Knobs (BASS, MIDDLE, TREBLE), CHORUS Switch
(MIC/LINE Channel)
PHANTOM Switch, SELECT Switch (MIC/LINE), VOLUME Knob, Equalizer Knobs (BASS, MIDDLE, TREBLE), CHORUS Switch, CHORUS Knob, REVERB/DELAY Knob (ANTI-FEEDBACK), FREQUENCY Knob, START Button, MUTE Switch, MASTER Knob, POWER Switch
Indicator: CHORUS (GUITAR Channel, MIC/LINE Channel), ANTI-FEEDBACK, MUTE, POWER
Connectors
GUITAR Channel Input Jack (1/4" phone type)
MIC/LINE Input Jacks (XLR type, 1/4" phone type)
AUX IN Jacks (RCA phono type,1/4" phone type)
DI/TUNER OUT Jack (1/4" TRS phone type)
LINE OUT Jacks (XLR type, 1/4" phone type)
SUBWOOFER OUT Jack (1/4" phone type)
PHONES Jack (Stereo 1/4" phone type)
FOOTSWITCH Jacks (1/4" TRS phone type)
Power Supply: AC 117V, AC 230V, AC 240V (50/60Hz)
Power Consumption: 30W
Options (Not included) Footswitch: BOSS FS-5L (Mute On/Off), BOSS FS-5U, BOSS FS-6 Connection Cable: PCS-31
Size and Weight
Width: 18-5/16" (464mm)
Depth: 11-15/16" (303mm)
Height: 12-7/8" (326mm)
Weight: 25lb. 13oz. (11.7kg)
* 0 dBu = 0.775 Vrms
